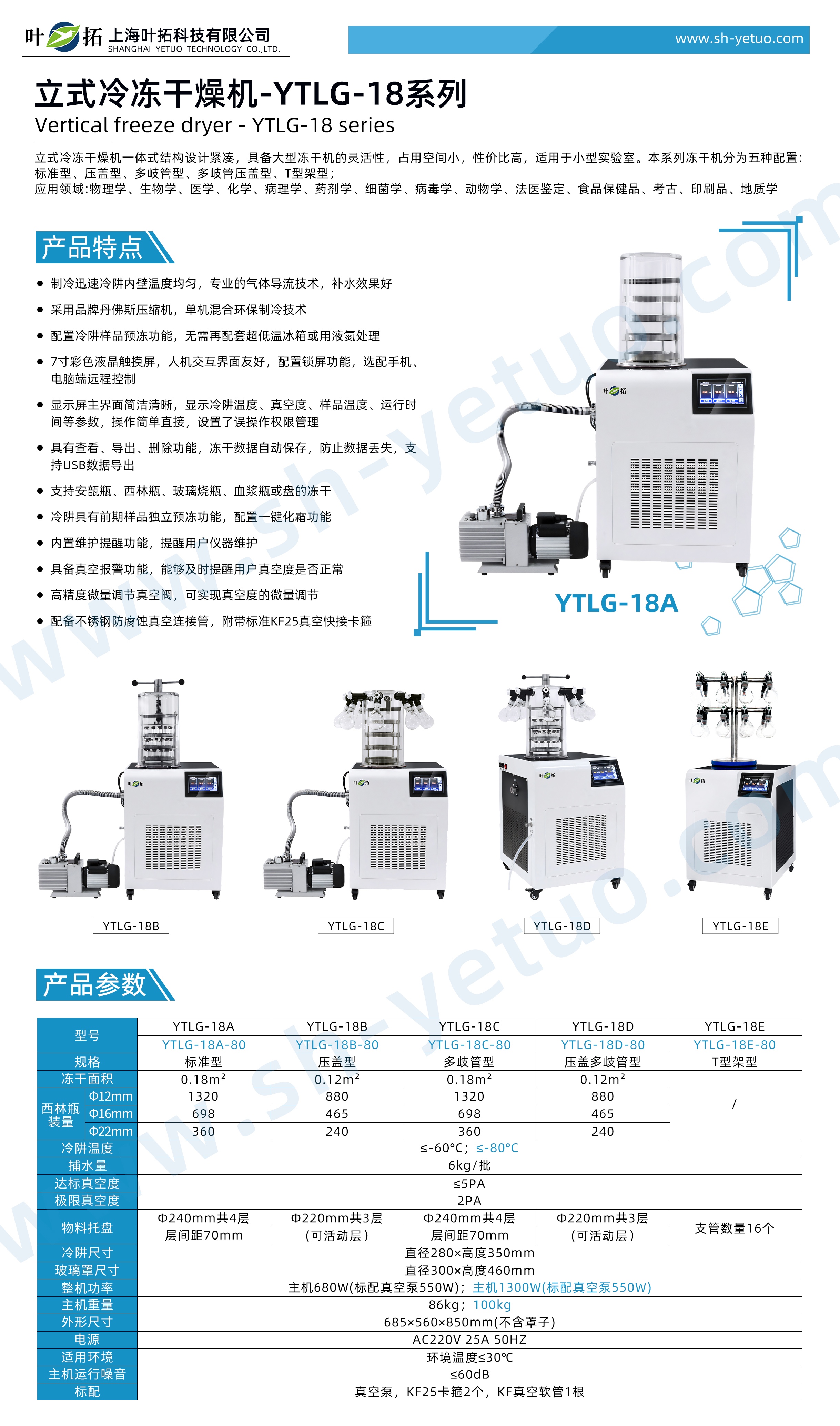

YETUO YTLG-18D-80 Vertical Multi-Manifold Stoppering Freeze Dryer

Model: YTLG-18D-80

Product Overview:

The YETUO YTLG-18D-80 Vertical Multi-Manifold Stoppering Freeze Dryer features an integrated vertical structure and is designed for laboratory sample freeze-drying and vial processing. It provides a freeze-drying area of 0.12 m², a cold trap temperature of ≤-80°C, an ice collection capacity of 6 kg per batch, a specified vacuum pressure of ≤5 Pa, and an ultimate vacuum pressure of 2 Pa. It is equipped with three Ø220 mm material trays, including a movable layer. The vial capacity is 880 vials for Ø12 mm, 465 vials for Ø16 mm and 240 vials for Ø22 mm. The equipment features a 7-inch color touchscreen for monitoring operating parameters and real-time curves, automatic data storage and USB export, as well as cold trap sample pre-freezing, one-touch defrosting, vacuum alarms and fine vacuum adjustment.

Freeze-Drying Principle:

Freeze-drying is a drying process based on sublimation. Materials are first frozen and then placed under suitable vacuum conditions, allowing ice to sublimate directly into water vapor. This process is used in laboratory sample preparation and preservation applications. The final characteristics of freeze-dried materials depend on sample properties and processing conditions.

Product Features of YETUO YTLG-18D-80 Vertical Multi-Manifold Stoppering Freeze Dryer

● Features an integrated vertical structure with multi-manifold and stoppering configurations for laboratory freeze-drying applications.

● Equipped with a refrigeration system for low-temperature cold trap operation.

● The cold trap features a sample pre-freezing function for laboratory sample preparation.

● Equipped with a 7-inch color LCD touchscreen featuring an interactive operating interface and screen-lock function. Mobile phone and computer remote control are available as optional configurations.

● The main display shows cold trap temperature, vacuum pressure, sample temperature and operating time. Operation permission management is provided for equipment settings.

● Supports real-time curve viewing, data review, export and deletion. Freeze-drying data can be automatically saved and exported via USB.

● Supports freeze-drying applications using ampoules, penicillin vials, glass flasks, plasma bottles and trays.

● The cold trap provides an independent sample pre-freezing function and one-touch defrosting.

● Built-in maintenance reminders help users keep track of equipment maintenance requirements.

● Vacuum alarm function provides alerts regarding vacuum conditions.

● Equipped with a high-precision vacuum adjustment valve for fine vacuum regulation.

● Equipped with a stainless steel vacuum connection hose and standard KF25 quick-connect clamps.

Detailed Technical Specifications
