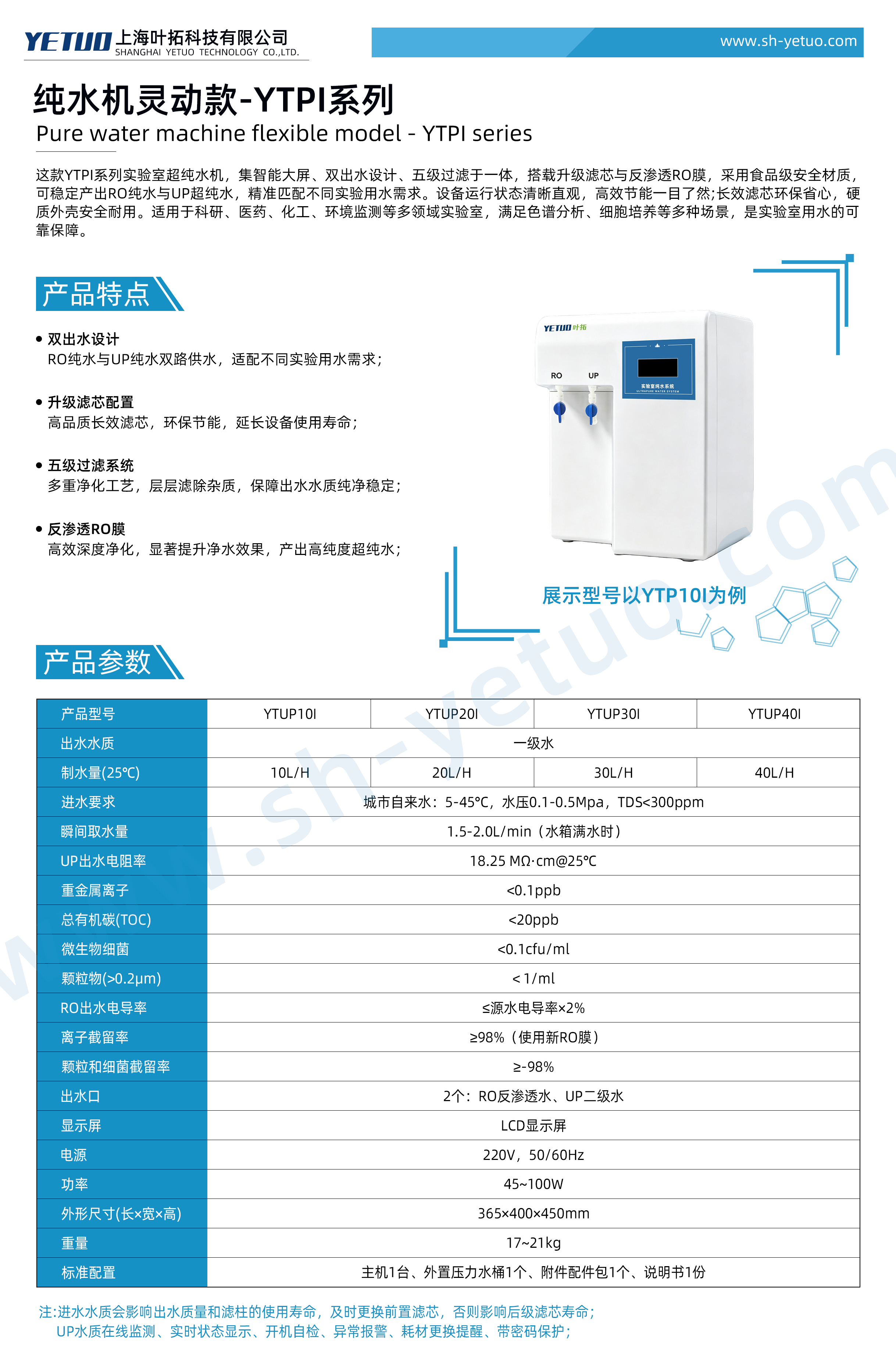

YETUO YTUP30I Pure Water Machine (Dynamic)
Model: YTUP30I
Product Overview:
The YETUO YTUP30I Pure Water Machine (Dynamic) features dual RO and UP outlets, a production rate of 30 L/h at 25°C, and UP water resistivity of 18.25 MΩ·cm at 25°C. It includes a five-stage filtration system, a reverse osmosis membrane and an LED display, with online UP water-quality monitoring, startup self-checks, alarms and consumable replacement reminders.
- Product Details
- Product manual
YETUO YTUP30I Pure Water Machine (Dynamic) – Product Features
Dual RO and UP outlets
Separate RO and UP outlets support different laboratory water requirements.
Five-stage filtration system
Multiple filtration stages help remove impurities and support consistent water quality.
Reverse osmosis membrane
The RO membrane provides an important stage of feed-water purification.
Online water-quality monitoring
Online UP water-quality monitoring and real-time status display support routine operation checks. Startup self-checks, alarms, consumable replacement reminders and password protection assist equipment management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YTUP30I |
| Water quality grade | Grade I water |
| Water production rate (25°C) | 30 L/h |
| Feed-water requirements | Municipal tap water; temperature 5–45°C; inlet pressure 0.1–0.5 MPa; TDS <300 ppm |
| Instantaneous dispensing rate | 1.5–2.0 L/min (with a full tank) |
| UP outlet resistivity | 18.25 MΩ·cm at 25°C |
| Heavy metal ions | <0.1 ppb |
| Total organic carbon (TOC) | <20 ppb |
| Microbial count | <0.1 CFU/mL |
| Particles (>0.2 μm) | <1/mL |
| RO outlet conductivity | ≤ feed-water conductivity × 2% |
| Ion rejection rate | ≥98% (with a new RO membrane) |
| Water outlets | Two outlets: RO water and UP water |
| Display | LED display |
| Power supply | 220 V, 50/60 Hz |
| Power consumption | 45–100 W |
| Dimensions (L × W × H) | 365 × 400 × 450 mm |
| Weight | 17–21 kg |
| Standard configuration | One main unit, one external pressure tank, one accessory kit and one user manual |
Notes: Feed-water quality affects output-water quality and filter service life. Timely replacement of the pre-filter helps protect downstream filter cartridges. The unit supports online UP water-quality monitoring, real-time status display, startup self-checks, alarms, consumable replacement reminders and password protection.
