Product Parameters:
Model: THR16K
Maximum speed: 16600r/min
Maximum relative centrifugal force: 21532xg
Maximum capacity: 600mi (6x100ml)
Sample size range: 0.5ml-100ml
Speed accuracy: ± 10r/min
Temperature control setting range: -20 ° C~40 ° C
Temperature control accuracy: ± 1 ℃
Timing range: 1s-99h59min59s
Power supply: AC 220V 50Hz 10A
Whole machine noise: ≤ 55dB (A)
Whole machine power: 1200W
Fastest acceleration and deceleration: 25~30s
Dimensions: 550x530x360mm
Weight: 68kg
Rotor parameters:
1. Rotor type: angular rotor, rotor capacity: 12x1.5/2.2ml, maximum speed: 16600r/min
Maximum relative centrifugal force: 19200xg
2. Rotor type: angular rotor, rotor capacity: 12x5ml, maximum speed: 15000r/mi
Maximum relative centrifugal force: 16099xg
3. Rotor type: angular rotor, rotor capacity: 12x10ml, maximum speed: 13000r/min
Maximum relative centrifugal force: 16249xg
4. Rotor type: angular rotor, rotor capacity: 8x15ml (pointed bottom), maximum speed: 11000r/min
Maximum relative centrifugal force: 12580xg
5. Rotor type: angular rotor, rotor capacity: 8x20ml, maximum speed: 13000r/min
Maximum relative centrifugal force: 17194xg
6. Rotor type: angular rotor, rotor capacity: 6x50ml (round bottom), maximum speed: 11000r/min
Maximum relative centrifugal force: 13122xg
7. Rotor type: angular rotor, rotor capacity: 6x50ml (pointed bottom), maximum speed: 11000r/min
Maximum relative centrifugal force: 13122xg
8. Rotor type: angular rotor, rotor capacity: 24x1.5/2.2ml, maximum speed: 15000r/min
Maximum relative centrifugal force: 13122xg
9. Rotor type: Angular rotor, rotor capacity: 4x100ml, maximum speed: 10000r/min
Maximum relative centrifugal force: 10845xg
10. Rotor type: angular rotor, rotor capacity: 6x100ml, maximum speed: 10000r/min
Maximum relative centrifugal force: 11404xg
11. Rotor type: angular rotor, rotor capacity: 48x0.5ml, maximum speed: 12000r/min
Maximum relative centrifugal force: 12650xg
12. Rotor type: angular rotor, rotor capacity: 48x1.5ml, maximum speed: 12000r/min
Maximum relative centrifugal force: 15280xg
- Product Details
- Product manual

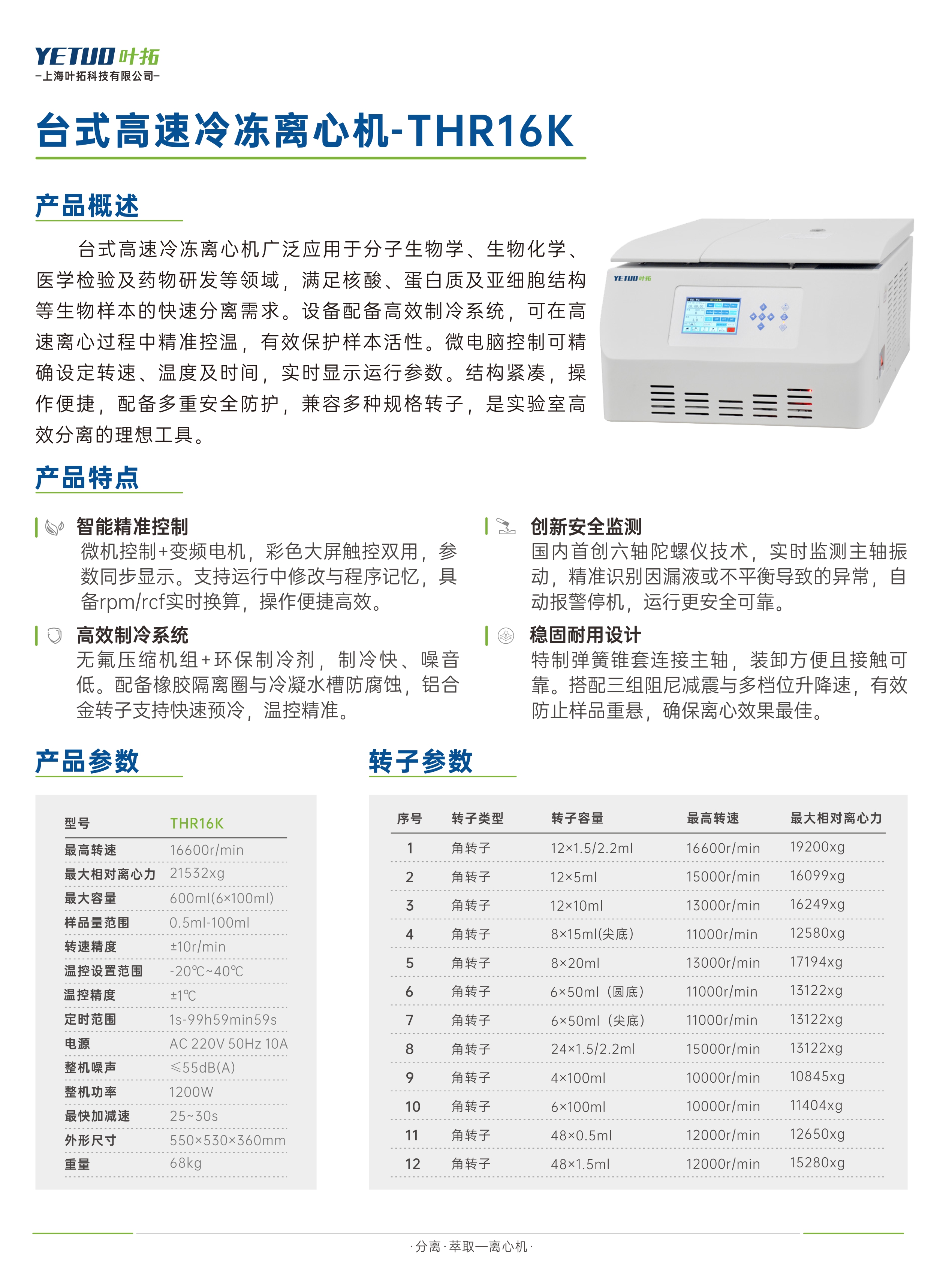

Yetuo THR16K desktop high-speed freeze centrifuge
Model: THR16K
Product Overview:
Desktop high-speed freeze centrifuges are widely used in fields such as molecular biology, biochemistry, medical testing, and drug development to meet the rapid separation needs of biological samples such as nucleic acids, proteins, and subcellular structures. The equipment is equipped with an efficient refrigeration system that can accurately control temperature during high-speed centrifugation, effectively protecting sample activity. Microcomputer control can accurately set speed, temperature, and time, and display operating parameters in real-time. Compact structure, easy operation, equipped with multiple safety protections, compatible with multiple specifications of rotors, it is an ideal tool for efficient separation in laboratories.
Product Features of Yetuo THR16K Desktop High Speed Freeze Centrifuge
Intelligent and precise control
Microcomputer control+variable frequency motor, color large screen touch dual use, parameter synchronous display. Supports modifications during operation and program memory, with real-time conversion of rpm/rcf, making the operation convenient and efficient.
Innovative safety monitoring
The first domestically developed six axis gyroscope technology monitors spindle vibration in real-time, accurately identifies abnormalities caused by leakage or imbalance, automatically alarms and stops, and ensures safer and more reliable operation.
● Efficient refrigeration system
Fluorine free compressor unit+environmentally friendly refrigerant, fast cooling and low noise. Equipped with rubber isolation rings and corrosion-resistant condensate tanks, the aluminum alloy rotor supports rapid pre cooling and precise temperature control.
● Stable and durable design
Specially designed spring cone sleeve is connected to the spindle, which is easy to disassemble and has reliable contact. Paired with three sets of damping and shock absorption, as well as multi gear acceleration and deceleration, it effectively prevents sample re suspension and ensures optimal centrifugal effect.
