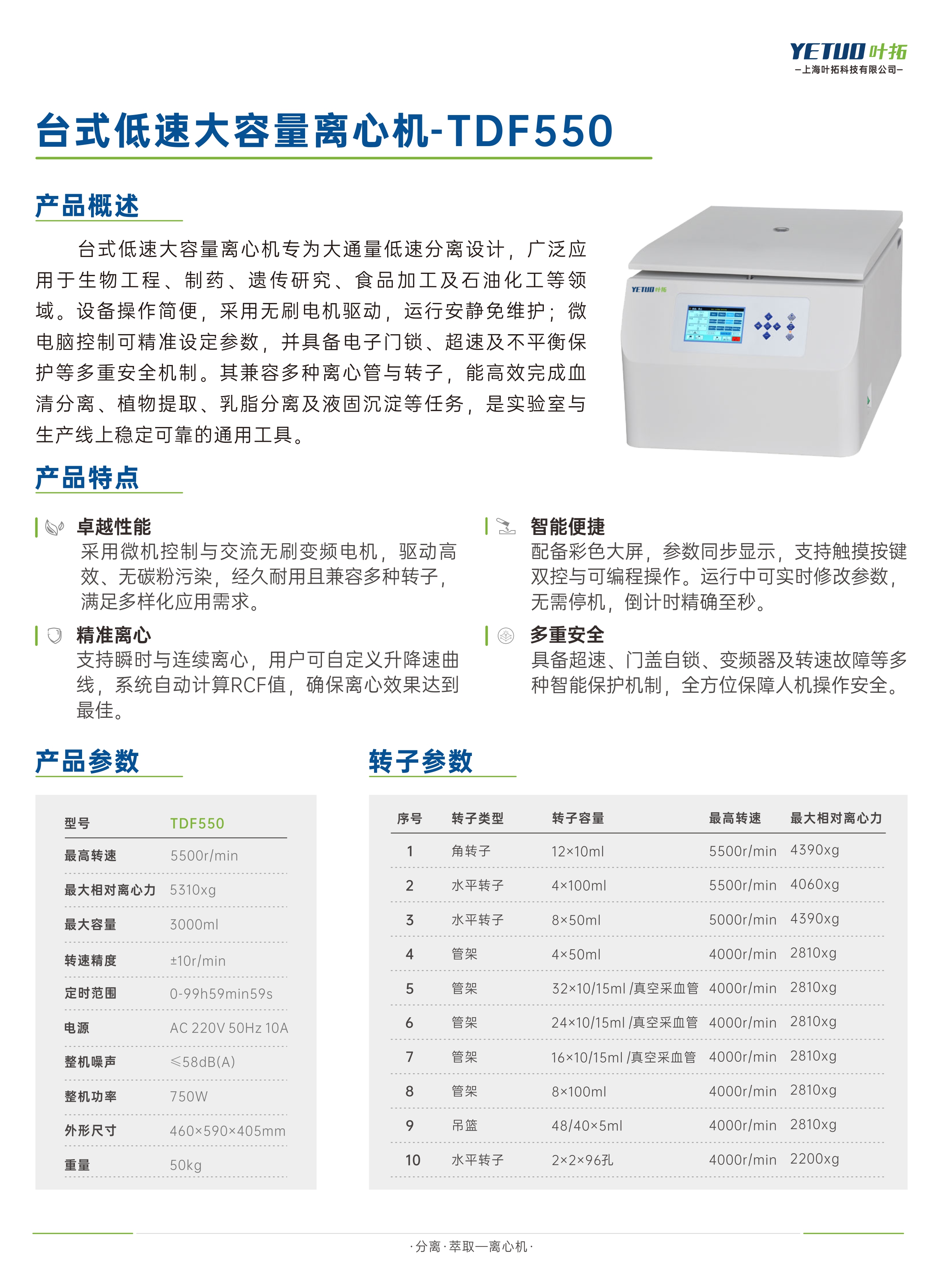

Yetuo TDF550 desktop low-speed large capacity centrifuge

Product Parameters:

Model: TDF550

Maximum speed: 5500r/min

Maximum relative centrifugal force: 5310kg

Maximum capacity: 3000ml

Speed accuracy: ± 10r/min

Timing range: 0-99H59Min59s

Power supply: AC 220V 50Hz 5A

Whole machine noise: ≤ 58dB (A)

Overall power: 750W

Dimensions: 460x590x405mm

Weight: 50kg


Rotor parameters:

1. Rotor type: angular rotor, rotor capacity: 12x10ml, maximum speed: 5500r/min

Maximum relative centrifugal force: 4390xg

2. Rotor type: horizontal rotor rotor capacity: 4x100ml maximum speed: 5500r/min

Maximum relative centrifugal force: 4060xg

3. Rotor type: horizontal rotor, rotor capacity: 8x50ml, maximum speed: 5000r/min

Maximum relative centrifugal force: 4390xg

4. Rotor type: Pipe rack Rotor capacity: 4x50ml Maximum speed: 4000r/min

Maximum relative centrifugal force: 2810xg

5. Rotor type: Pipe rack Rotor capacity: 32x10/15ml/Vacuum blood collection tube Maximum speed: 4000r/min

Maximum relative centrifugal force: 2810xg

6. Rotor type: pipe rack rotor capacity: 24x10/15ml/vacuum blood collection tube maximum speed: 4000r/min

Maximum relative centrifugal force: 2810xg

7. Rotor type: Pipe rack Rotor capacity: 16x10/15ml/Vacuum blood collection tube Maximum speed: 4000r/min

Maximum relative centrifugal force: 2810xg

8. Rotor type: pipe rack rotor capacity: 8x100ml maximum speed: 4000r/min

Maximum relative centrifugal force: 2810xg

9. Rotor Type: Basket Rotor Capacity: 48/40x5ml Maximum Speed: 4000r/min

Maximum relative centrifugal force: 2810xg

10. Rotor type: horizontal rotor rotor capacity: 2x2x96 holes 4000r/min

Maximum relative centrifugal force: 2200xg


Product Quotation:Inquiry now

Yetuo TDF550 desktop low-speed large capacity centrifuge


Model: TDF550


Product Overview:


The desktop low-speed large capacity centrifuge is designed specifically for high flux low-speed separation and is widely used in fields such as biotechnology, pharmaceuticals, genetic research, food processing, and petrochemicals. The device is easy to operate, driven by a brushless motor, and operates quietly without maintenance; Microcomputer control can accurately set parameters and has multiple safety mechanisms such as electronic door locks, overspeed and imbalance protection. It is compatible with multiple centrifuge tubes and rotors, and can efficiently complete tasks such as serum separation, plant extraction, milk fat separation, and liquid-solid precipitation. It is a stable and reliable universal tool for laboratories and production lines.


Product features of Yetuo TDF550 desktop low-speed large capacity centrifuge


● Excellent performance


Adopting microcomputer control and AC brushless variable frequency motor, it drives efficiently, without carbon powder pollution, durable and compatible with multiple rotors, meeting diverse application needs.


● Intelligent and convenient


Equipped with a large color screen, parameter synchronous display, supporting touch button dual control and programmable operation. During operation, parameters can be modified in real-time without stopping the machine, and the countdown is accurate to seconds.


● Precise centrifugation


Support instantaneous and continuous centrifugation, users can customize the acceleration and deceleration curves, and the system automatically calculates the RCF value to ensure optimal centrifugation effect.


● Multiple safety measures


Equipped with multiple intelligent protection mechanisms such as overspeed, door cover self-locking, frequency converter, and speed failure, it comprehensively ensures the safety of human-machine operation.
