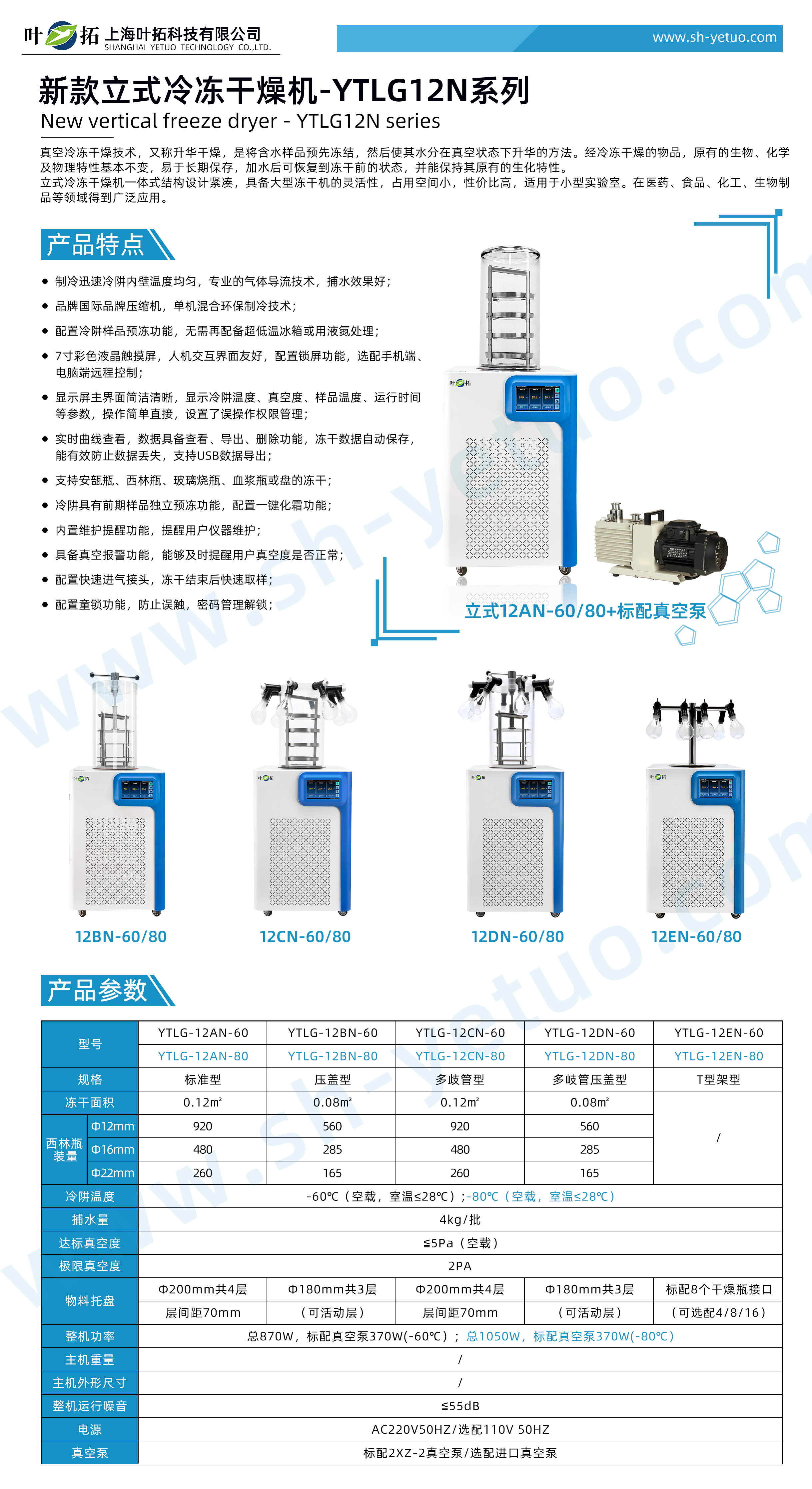

Ye Tuo YTLG-12CN-60 Vertical Manifold Freeze Dryer

Model: YTLG-12CN-60

Product Overview:

The Ye Tuo YTLG-12CN-60 Vertical Manifold Freeze Dryer is designed for laboratory sample freeze-drying and scientific research. Featuring an integrated vertical structure and a manifold configuration, it provides a freeze-drying area of 0.12 m², a cold trap temperature of -60°C (no-load, ambient temperature ≤28°C), an ice collection capacity of 4 kg per batch, a specified vacuum pressure of ≤5 Pa (no-load), and an ultimate vacuum pressure of 2 Pa. It is equipped with four Φ200 mm material trays with 70 mm spacing, suitable for freeze-drying vial samples and other compatible containers. The equipment features a 7-inch color touchscreen for monitoring operating parameters and real-time curves, automatic data storage and USB export, as well as cold trap sample pre-freezing, one-touch defrosting, vacuum alarms and a quick air intake function.

Freeze-Drying Principle:

Freeze-drying is a drying process based on sublimation. Materials are first frozen at low temperatures and then placed under suitable vacuum conditions, allowing ice to sublimate directly into water vapor. This process is used in laboratory sample preparation and preservation applications. The final characteristics of freeze-dried materials depend on sample properties and processing conditions.

Product Features:

1. The refrigeration system provides cooling for the cold trap. Gas flow guidance technology is used to assist water vapor collection.

2. Equipped with a compressor and single-unit mixed-refrigerant refrigeration technology.

3. The cold trap features a sample pre-freezing function for laboratory sample preparation.

4. Equipped with a 7-inch color LCD touchscreen featuring an interactive operating interface and screen-lock function. Mobile phone and computer remote control are available as optional configurations.

5. The main display shows cold trap temperature, vacuum pressure, sample temperature and operating time. User permission management is provided for operation settings.

6. Supports real-time curve viewing, data review, export and deletion. Freeze-drying data can be automatically saved and exported via USB.

7. Supports freeze-drying applications using ampoules, vials, glass flasks, plasma bottles and trays.

8. The cold trap provides an independent sample pre-freezing function and one-touch defrosting.

9. Built-in maintenance reminders help users keep track of equipment maintenance requirements.

10. Vacuum alarm function provides alerts regarding abnormal vacuum conditions.

11. Equipped with a quick air intake connector for sample removal after freeze-drying.

12. Equipped with a chamber locking function and password-based unlocking management.

Detailed Technical Specifications:
