YETUO YTLG-10BN-80 Benchtop Stoppering Freeze Dryer
Model: YTLG-10BN-80
Product Overview:
The YETUO YTLG-10BN-80 is a benchtop stoppering freeze dryer with a freeze-drying area of 0.08 m², a cold trap temperature of -80°C (no-load, ambient temperature ≤28°C), and an ice collection capacity of 3 kg per batch. It is equipped with three Φ180 mm material tray layers, including movable layers. The vial capacity is 560 vials for Φ12 mm, 285 vials for Φ16 mm and 165 vials for Φ22 mm. The equipment features a 7-inch color LCD touchscreen, real-time curve viewing, automatic freeze-drying data storage and USB export, as well as sample pre-freezing, one-touch defrosting, vacuum alarms, quick air intake and password management.
- Product Details

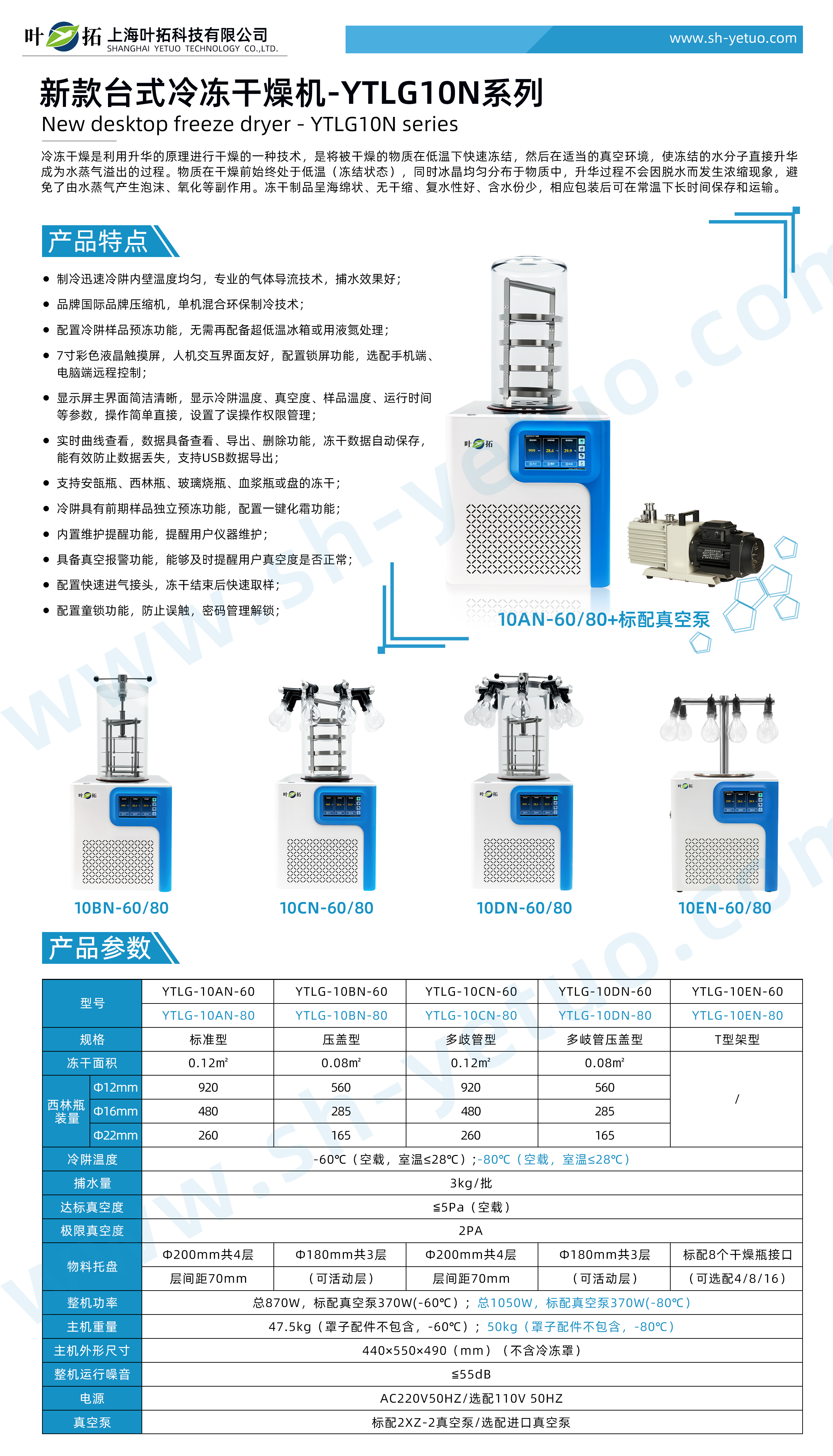

- Product manual
YETUO YTLG-10BN-80 Benchtop Stoppering Freeze Dryer
Model: YTLG-10BN-80
Product Overview:
The YETUO YTLG-10BN-80 is a benchtop stoppering freeze dryer designed for laboratory sample freeze-drying applications. It features a freeze-drying area of 0.08 m², a cold trap temperature of -80°C under no-load conditions at an ambient temperature of ≤28°C, and an ice collection capacity of 3 kg per batch. The equipment is equipped with three Φ180 mm material tray layers, including movable layers, and supports vial capacities of 560 vials for Φ12 mm, 285 vials for Φ16 mm and 165 vials for Φ22 mm.
Product Features:
1. The cold trap features rapid refrigeration and uniform inner-wall temperature. Professional gas-flow guidance technology is used to support water vapor collection.
2. Equipped with an internationally branded compressor and single-unit mixed-refrigerant refrigeration technology.
3. The cold trap is equipped with a sample pre-freezing function for laboratory sample preparation.
4. Equipped with a 7-inch color LCD touchscreen, a user-friendly interface and a screen-lock function. Remote control via mobile phone and computer is available as an optional configuration.
5. The main display shows cold trap temperature, vacuum level, sample temperature and operating time. Operation permission management helps prevent incorrect operation.
6. Supports real-time curve viewing, data viewing, exporting and deletion. Freeze-drying data can be automatically saved and exported via USB.
7. Supports freeze-drying applications using ampoules, vials, glass flasks, plasma bottles and trays.
8. The cold trap provides an independent sample pre-freezing function and one-touch defrosting.
9. Built-in maintenance reminders help users keep track of equipment maintenance.
10. Equipped with a vacuum alarm to notify users of abnormal vacuum conditions.
11. A quick air-intake connector allows convenient sample removal after freeze-drying.
12. Equipped with a chamber locking function and password management to help prevent accidental operation.
Detailed Technical Specifications:
| Parameter | Specification |
| Model | YTLG-10BN-80 |
| Type | Stoppering Type |
| Freeze-Drying Area | 0.08 m² |
| Vial Capacity (Φ12 mm) | 560 vials |
| Vial Capacity (Φ16 mm) | 285 vials |
| Vial Capacity (Φ22 mm) | 165 vials |
| Cold Trap Temperature | -80°C (no-load, ambient temperature ≤28°C) |
| Ice Collection Capacity | 3 kg/batch |
| Standard Vacuum Degree | ≤5 Pa (no-load) |
| Ultimate Vacuum Degree | 2 Pa |
| Material Trays | 3 layers, Φ180 mm (movable layers) |
| Overall Power | 1050 W total; standard vacuum pump: 370 W (-80°C) |
| Main Unit Weight | 50 kg (cover accessories excluded, -80°C) |
| Main Unit Dimensions | 440 × 550 × 490 mm (excluding freeze-drying cover) |
| Operating Noise | ≤55 dB |
| Power Supply | AC 220 V, 50 Hz / Optional 110 V, 50 Hz |
| Vacuum Pump | Standard 2XZ-2 vacuum pump / Optional imported vacuum pump |
