YETUO YTLG-10DN-60 Benchtop Stoppering Manifold Freeze Dryer

Model: YTLG-10DN-60

Product Overview:

The YETUO YTLG-10DN-60 Benchtop Stoppering Manifold Freeze Dryer is designed for laboratory freeze-drying of vial samples and other compatible containers. Featuring a combined stoppering and manifold configuration, it supports vial stoppering and freeze-drying with suitable external containers. The equipment provides a freeze-drying area of 0.08 m², a cold trap temperature of -60°C, an ice collection capacity of 3 kg per batch, a specified vacuum pressure of ≤5 Pa (no-load), and an ultimate vacuum pressure of 2 Pa. It is equipped with three Ø180 mm material trays, including a movable layer. Additional functions include cold trap sample pre-freezing, real-time curve monitoring, automatic data storage and USB export, making it suitable for laboratory freeze-drying applications involving different sample containers.

Freeze-Drying Principle:

Freeze-drying uses the principle of sublimation to remove moisture from frozen materials under vacuum conditions. Samples are first frozen and then placed in a suitable vacuum environment, where ice crystals sublimate directly into water vapor. This process is used in laboratory sample preparation and preservation applications. The final characteristics of freeze-dried materials depend on sample properties and processing conditions.

Product Features of YETUO YTLG-10DN-60 Benchtop Stoppering Manifold Freeze Dryer

● Combines a benchtop stoppering-type drying assembly with a manifold configuration for laboratory freeze-drying applications.

● Equipped with a refrigeration system and compressor for cold trap operation.

● Integrated cold trap sample pre-freezing function supports sample preparation before freeze-drying.

● Equipped with a 7-inch color LCD touchscreen featuring a user-friendly interface and screen-lock function. Remote control via mobile phone or computer is available as an optional configuration.

● The main display shows cold trap temperature, vacuum pressure, sample temperature and operating time. Operation permission management helps reduce accidental setting changes.

● Supports real-time curve viewing, data review, export and deletion. Freeze-drying data is automatically saved, and USB data export is supported.

● Supports freeze-drying applications using ampoules, penicillin vials, glass flasks, plasma bottles and trays.

● The cold trap provides an independent sample pre-freezing function and one-touch defrosting.

● Built-in maintenance reminders help users keep track of equipment maintenance requirements.

● Vacuum alarm function provides alerts regarding vacuum conditions.

● Equipped with a quick air intake connector for convenient sample removal after freeze-drying.

● Equipped with a chamber lock function to help prevent accidental operation, with password-based unlocking management.

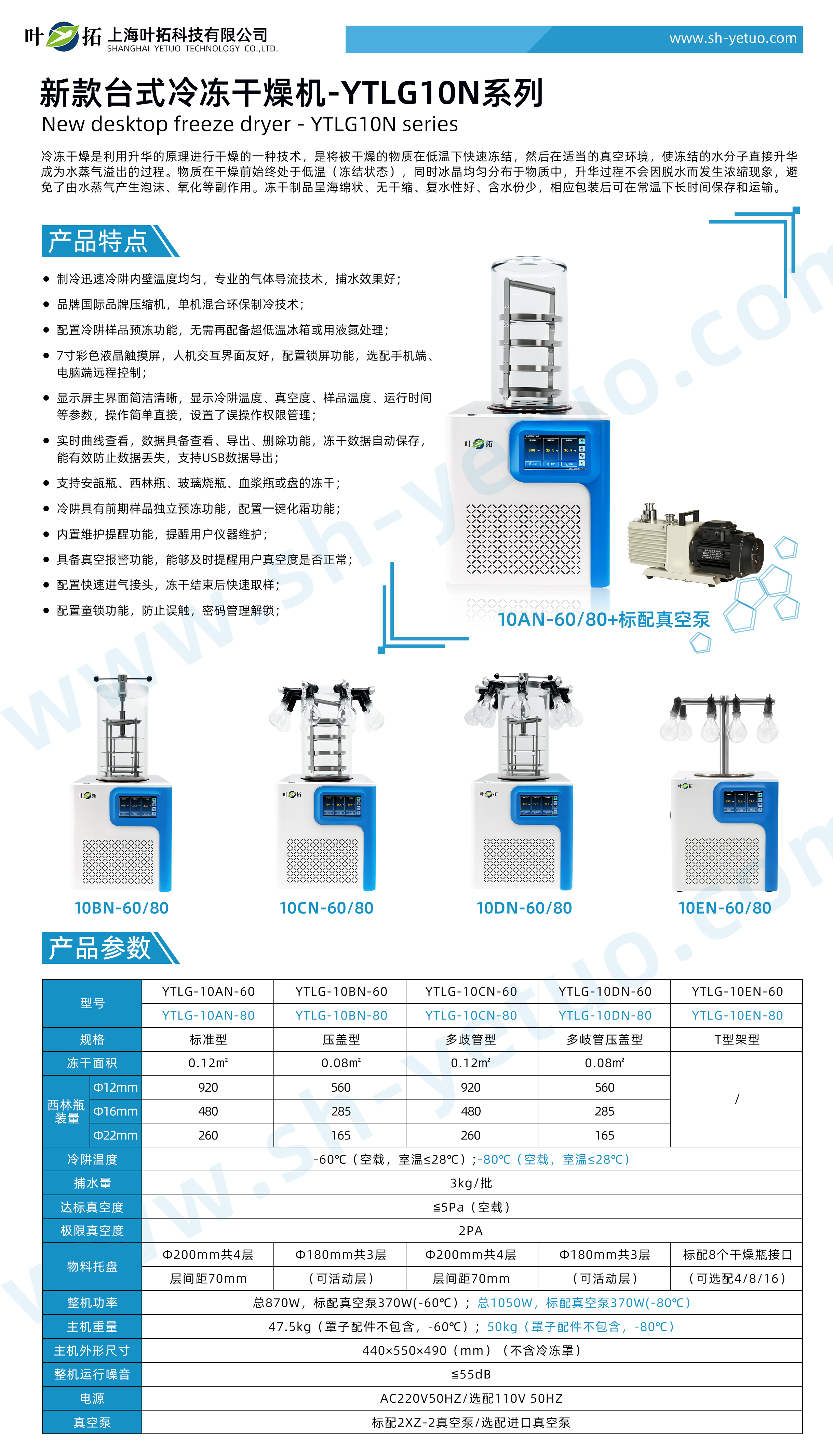

Detailed Technical Specifications
