YETUO YTLG-10CN-60 Benchtop Manifold Freeze Dryer

Model: YTLG-10CN-60

Product Overview:

The YETUO YTLG-10CN-60 Benchtop Manifold Freeze Dryer is designed for laboratory sample freeze-drying and scientific research. Featuring a compact benchtop structure and a manifold drying assembly, it supports compatible external freeze-drying containers for different sample preparation requirements. The standard model provides a freeze-drying area of 0.12 m², a cold trap temperature of -60°C (no-load, at an ambient temperature of ≤28°C), an ice collection capacity of 3 kg per batch, a specified vacuum pressure of ≤5 Pa (no-load), and an ultimate vacuum pressure of 2 Pa. It includes four Ø200 mm material trays with 70 mm spacing. The main unit weighs 47.5 kg (excluding chamber cover accessories) and measures 440 × 550 × 490 mm (excluding the drying chamber cover). The equipment features a 7-inch color touchscreen for monitoring cold trap temperature, vacuum pressure, sample temperature and operating time. It also supports freeze-drying data storage, USB export, independent cold trap sample pre-freezing, one-touch defrosting, maintenance reminders and vacuum alarms. Manifold connections and compatible external containers should be confirmed according to laboratory requirements.

Product Features of YETUO YTLG-10CN-60 Benchtop Manifold Freeze Dryer

● Rapid refrigeration with uniform temperature distribution on the inner wall of the cold trap. Professional gas flow guidance technology helps achieve effective water vapor collection.

● Equipped with an internationally recognized brand compressor and single-unit mixed-refrigerant environmentally friendly refrigeration technology.

● Integrated cold trap sample pre-freezing function eliminates the need for an additional ultra-low temperature freezer or liquid nitrogen treatment for the supported pre-freezing operation.

● Equipped with a 7-inch color LCD touchscreen featuring a user-friendly interface and screen-lock function. Remote control via mobile phone or computer is available as an optional configuration.

● The main display clearly shows cold trap temperature, vacuum pressure, sample temperature and operating time. The interface is easy to operate and includes operation permission management to help prevent incorrect operation.

● Supports real-time curve viewing, data review, export and deletion. Freeze-drying data is automatically saved to help prevent data loss, and USB data export is supported.

● Supports freeze-drying applications using ampoules, penicillin vials, glass flasks, plasma bottles and trays.

● The cold trap provides an independent sample pre-freezing function and one-touch defrosting.

● Built-in maintenance reminders help users keep track of equipment maintenance requirements.

● Vacuum alarm function provides timely alerts regarding abnormal vacuum conditions.

● Equipped with a quick air intake connector for convenient sample removal after freeze-drying.

● Equipped with a chamber locking function to help prevent accidental operation, with password-based unlocking management.

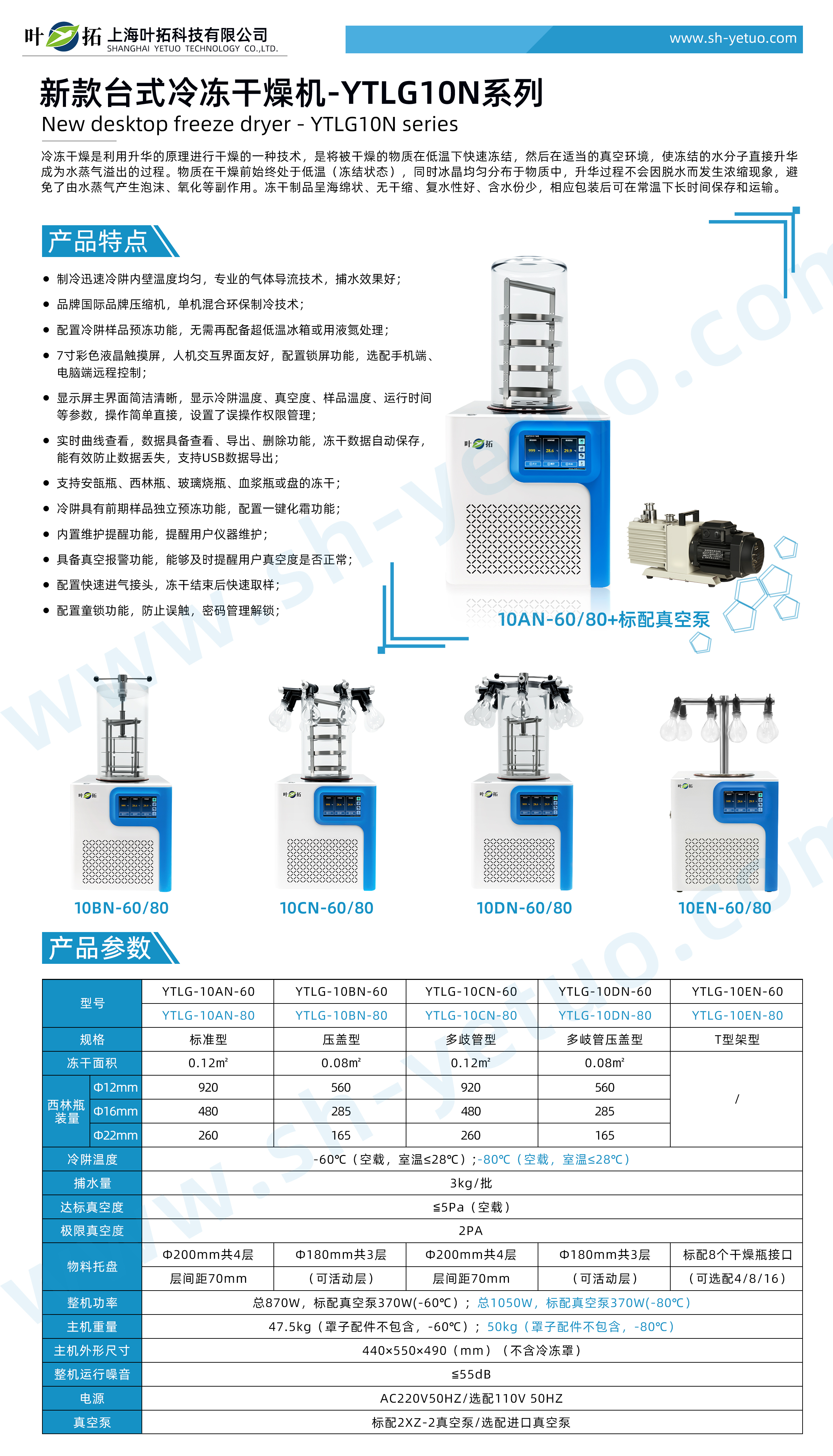

Detailed Technical Specifications
