YETUO YTLG-10AN-60 Benchtop Freeze Dryer

Model: YTLG-10AN-60

Product Overview:

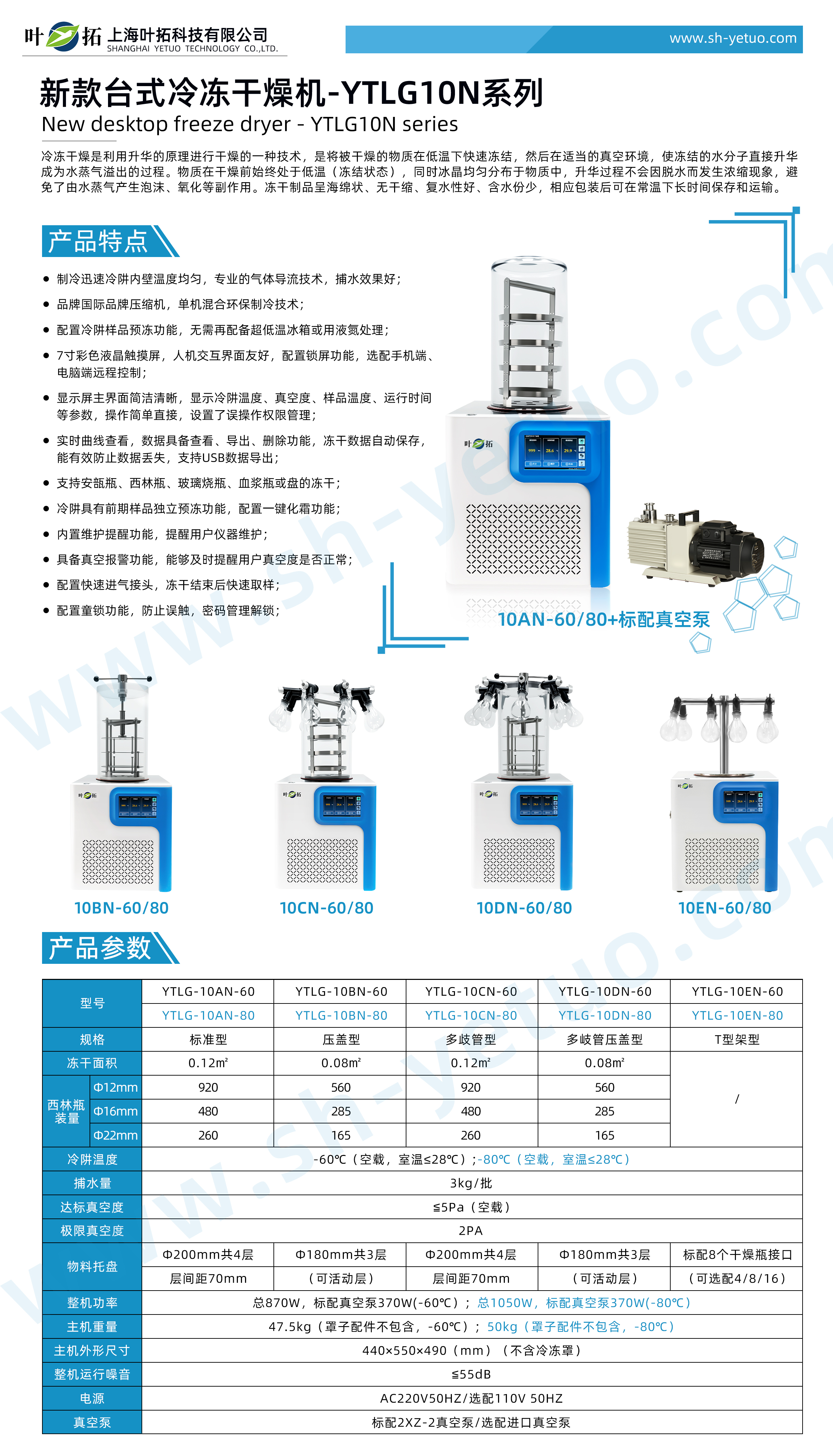

The YETUO YTLG-10AN-60 Benchtop Freeze Dryer is designed for laboratory sample freeze-drying and scientific research. The standard configuration provides a freeze-drying area of 0.12 m², a cold trap temperature of -60°C (no-load, at an ambient temperature of ≤28°C), an ice collection capacity of 3 kg per batch, a specified vacuum pressure of ≤5 Pa (no-load), and an ultimate vacuum pressure of 2 Pa. The main unit weighs 47.5 kg (excluding chamber cover accessories) and measures 440 × 550 × 490 mm (excluding the drying chamber cover). The equipment features four Ø200 mm material trays with 70 mm spacing and a 7-inch color touchscreen for monitoring operating parameters and real-time curves. It supports automatic freeze-drying data storage, USB export, cold trap sample pre-freezing, and one-touch defrosting.

Product Features of YETUO YTLG-10AN-60 Benchtop Freeze Dryer

● Rapid refrigeration with uniform temperature distribution on the inner wall of the cold trap. Professional gas flow guidance technology helps achieve effective water vapor collection.

● Equipped with an internationally recognized brand compressor and single-unit mixed-refrigerant refrigeration technology.

● Integrated cold trap sample pre-freezing function supports sample pre-freezing without requiring an additional ultra-low temperature freezer or liquid nitrogen treatment for the supported operation.

● Equipped with a 7-inch color LCD touchscreen featuring a user-friendly interface and screen-lock function. Remote control via mobile phone or computer is available as an optional configuration.

● The main display clearly shows cold trap temperature, vacuum pressure, sample temperature, and operating time. The interface is easy to operate and includes operation permission management to help prevent incorrect operation.

● Supports real-time curve viewing, data review, export, and deletion. Freeze-drying data is automatically saved, and USB data export is supported.

● Supports freeze-drying applications using ampoules, penicillin vials, glass flasks, plasma bottles, and trays.

● The cold trap provides an independent sample pre-freezing function and one-touch defrosting.

● Built-in maintenance reminders help users keep track of equipment maintenance requirements.

● Vacuum alarm function provides timely alerts regarding abnormal vacuum conditions.

● Equipped with a quick air intake connector for convenient sample removal after freeze-drying.

● Equipped with a chamber lock function to help prevent accidental operation, with password-based access management.

Detailed Technical Specifications
