Product Parameters:
Product model: YTR-230DT
Rotation speed: 5-310rpm digital display
Evaporation capacity: Max.25mL/min
Vacuum degree achievable: below 399.9Pa (3mmHg)
Temperature regulation range: Room temperature+5~180 ℃
Temperature regulation accuracy: water ± 1 ℃, oil ± 2 ℃
Temperature control: microcomputer PID control
Temperature setting and display: Key input setting and numerical display
Safety features: fuses, microcomputer anti burn circuit
Host motor: stepper motor, timed forward and reverse rotation
Water bath power: 1.30KW
Condenser: Vertical double serpentine coil with a cooling area of 0.15m ²
Rotating connection shaft: Short rotating glass shaft standard grinding mouth 29/38
Sample bottle: 2L pear shaped flask
Recycling bottle: spherical flask 1L
Vacuum sealing gasket: PTFE double sealing gasket
Lifting stroke: electric lifting 100mm+manual auxiliary extension 130mm
Operating environment temperature: 5-35 ℃
Input power supply: AC220V 50HZ
Bath pot size: diameter 240mm x depth 120mm
External dimensions: 560Wx440Dx750H (950) mm
Weight: 18kg
- Product Details
- Product manual

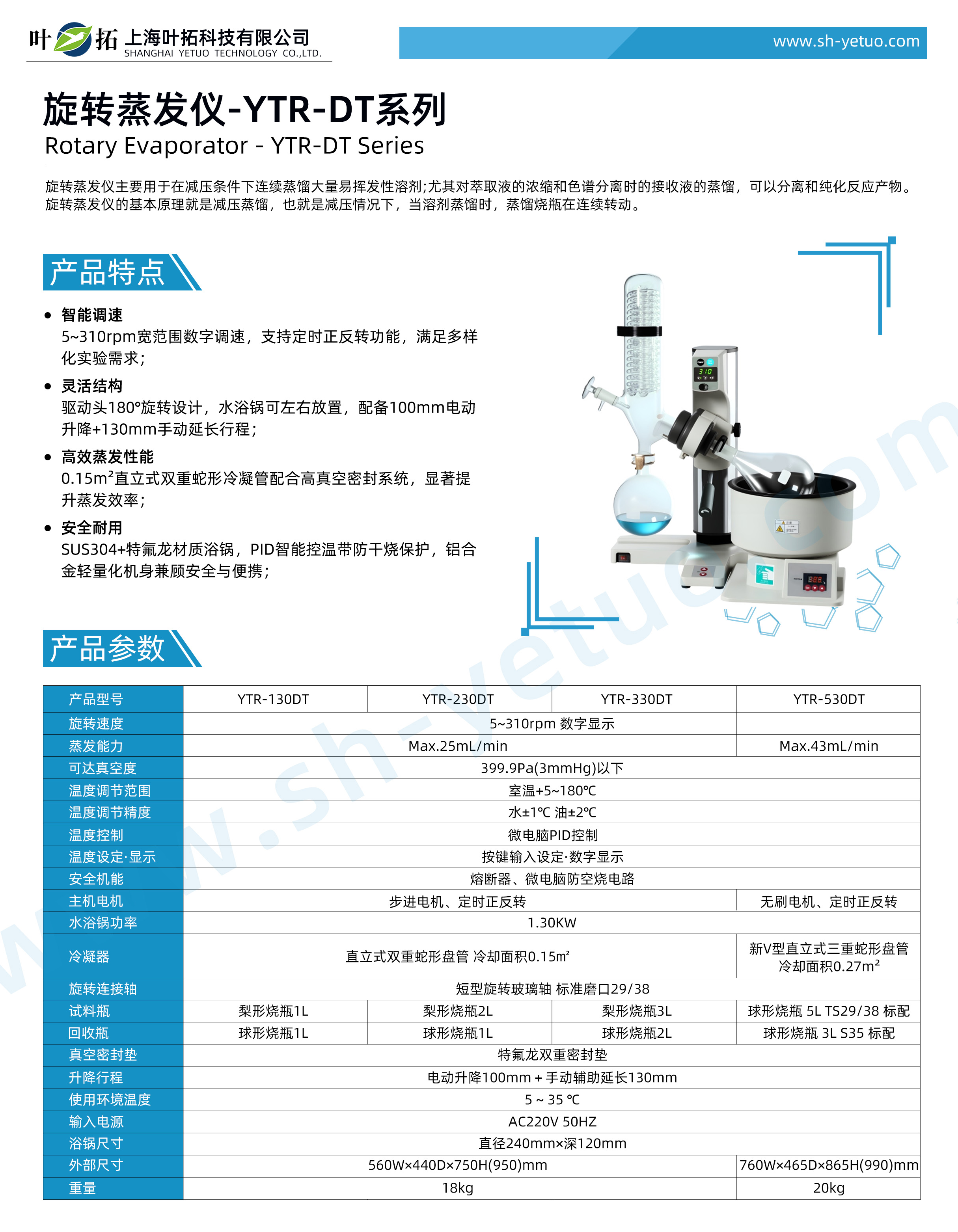

Yetuo YTR-230DT rotary evaporator
Model: YTR-230DT
Product Overview:
The rotary evaporator is mainly used for continuous distillation of large amounts of volatile solvents under reduced pressure conditions; Especially for the concentration of extraction liquid and distillation of the receiving liquid during chromatographic separation, reaction products can be separated and purified. The basic principle of a rotary evaporator is vacuum distillation, which means that under vacuum conditions, when the solvent is distilled, the distillation flask rotates continuously.
Product Features of Yetuo YTR-230DT Rotary Evaporator
● Intelligent speed regulation
5~310rpm wide range digital speed regulation, supporting timed forward and reverse rotation functions, meeting diverse experimental needs;
● Flexible structure
The drive head is designed to rotate 180 degrees, and the water bath can be placed left and right. It is equipped with a 100mm electric lift and a 130mm manual extension stroke;
● Efficient evaporation performance
0.15m ² upright double serpentine condenser tube combined with high vacuum sealing system significantly improves evaporation efficiency;
● Safe and durable
SUS304+Teflon material bath pot, PID intelligent control temperature zone anti dry burning protection, aluminum alloy lightweight body that balances safety and portability;
